13 Products.
Back
  • SAF Dome Collar for 47mm Friction Bolt

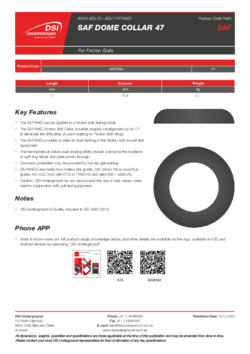

    SAF Dome Collar for 47mm Friction Bolt

    SAF

    The SAFRING can be applied to a friction bolt during install. Alternatively a strengthen ring can be included in the manufacturing process. (see High Capacity Ring Friction Bolt Data Sheet)

    Download PDF
  • Pin Nuts

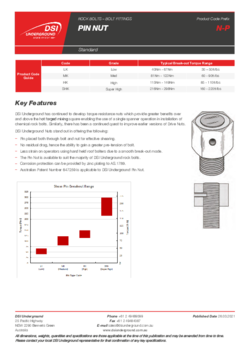

    Pin Nuts

    N-P

    DSI drive nut that utilises a shear pin breakout system.

    Download PDF
  • Expansion Shells

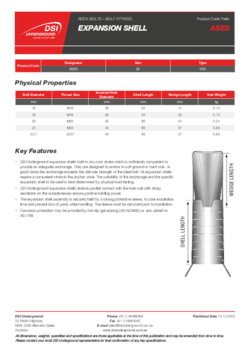

    Expansion Shells

    ASES

    DSI expansion shells hold in any rock strata which is sufficiently competent to provide an adequate anchorage. They are designed to anchor in soft ground or hard rock. In good stratathe anchorage exceeds the ultimate strength of the steel bolt. All expansion shells require a competent strata in the anchor zone. The suitability of the anchorage and the specific expansion shell to be used is best determined by physical load testing

    Download PDF
  • Steel Wedges

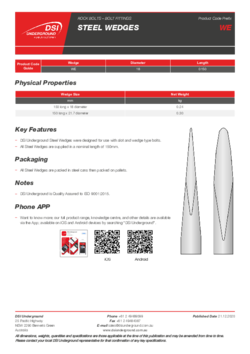

    Steel Wedges

    WE

    DSI Steel Wedges were designed for use with slot and wedge type bolts.

    Download PDF

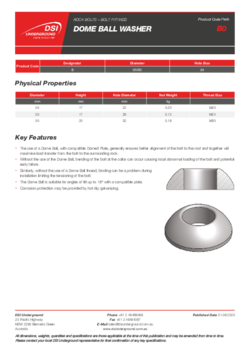

  • Dome Ball Washers

    Dome Ball Washers

    B0

    The use of a Dome Ball, with compatible Domed Plate, generally ensures better alignment of the bolt to the roof and together will maximise load transfer from the bolt to the surrounding rock.

    Download PDF

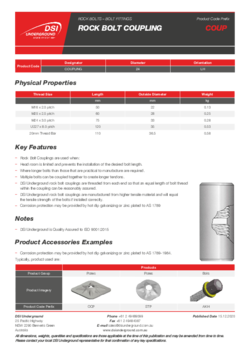

  • Rock Bolt Coupling

    Rock Bolt Coupling

    COUP

    The Rock Bolt Coupling is a specialty product used to connect the thread of two rock bolts together.

    Download PDF
  • Rock Bolt Extension Coupling

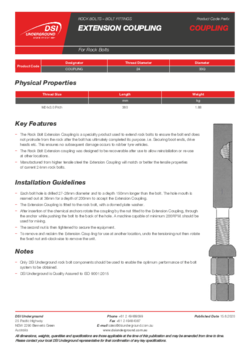

    Rock Bolt Extension Coupling

    COUPLING

    The Rock Bolt Extension Coupling is a specialty product used to extend rock bolts to ensure the bolt end does not protrude from the rock after the bolt has ultimately completed its purpose. i.e. Securing boot ends, dirve heads etc. This ensures no subsequent damage occurs to rubber tyred vehicles.

    Download PDF
  • Cable Sling Tension Block

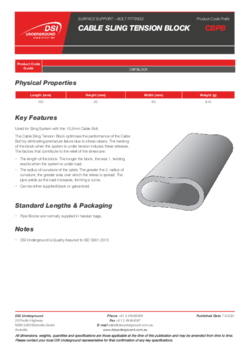

    Cable Sling Tension Block

    CBPB

    Used for Sling System with the 15.2mm Cable Bolt.

    Download PDF
  • Resin Mixer

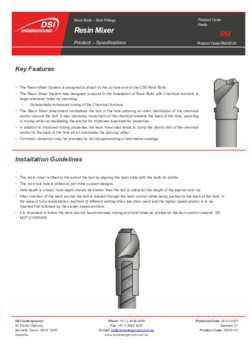

    Resin Mixer

    RM35100

    The Resin Mixer System was designed to assist in the installation of Rock Bolts with Chemical Anchors in larger diameter holes by providing substantially enhanced mixing of the Chemical Anchors.

    The Resin Mixer System is designed to attach to the up hole end of the CS5 and CS4 Rock Bolts.

    Download PDF
  • OZ Nut - Drive Nuts

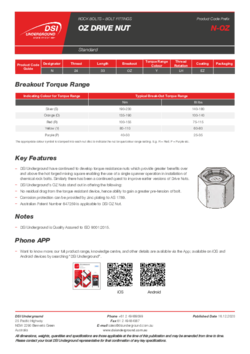

    OZ Nut - Drive Nuts

    N-OZ

    DSI Underground have continued to develop torque resistance nuts. The DSI Oz Nut has a metal insert pressed into the backof the nut to provide the breakout resistance during resin mixing. Once the resin has cured the metal insert is broken out and the nut is run up the thread.

    Download PDF
